DAESAN Twin Hook Hoist EDSDHA Series
Electric Hoist - Motorized Trolley, Hoist
DAESAN Twin Hook Hoist EDSDHA Series
EDSDHA: Twin hook type electric chain hoist
DAESAN twin hook electric chain hoist is equipped with a single motor and two hooks are intended to lift the hooks with load horizontally, equally and safely. Since there is 1 chain hoist drive., the load is kept level during hoisting. This is optimal for long and wide loads that must be hoisted from 2 points and cargo that must be kept level. Special requirements such as dual speed or curved beam are optional.
PRODUCTS
- 1t, 1.5t, 2t(Single)
- 2t (Double), 2, 5t, 3t, 5t
PRODUCT FEATURES
- All standard units are CE Certified
- It is perfect type where frequent hoist operation is required
- Super strength blackened load chain is standard Nickel plated load chain is optional upon request
- Sealed body suitable for harsh indoor or outdoor environments with IP55 rated.

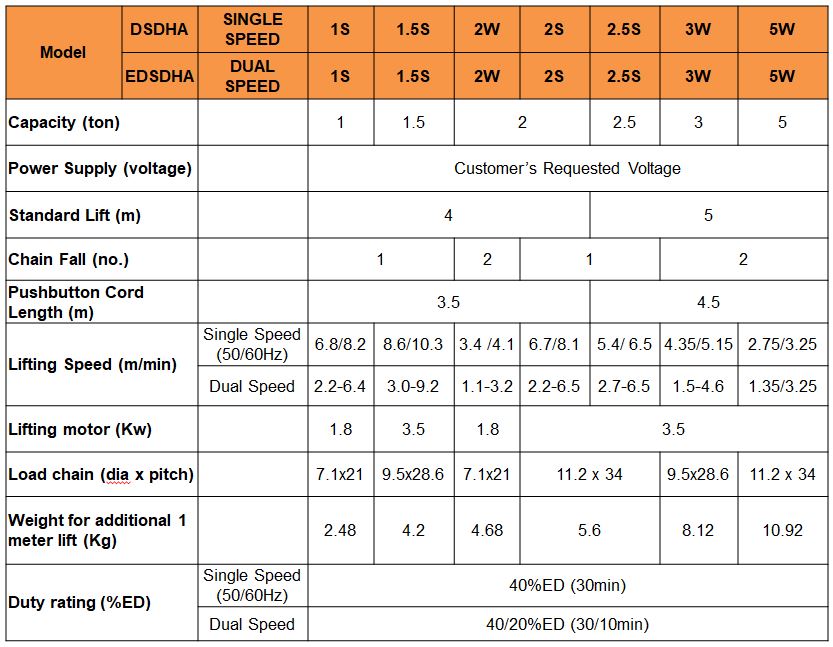

Specifications
- Model – EDSDHA
- Capacity – 1 ton
- Power Supply – Customer’s Requested Voltage
- Standard Lift – 4m
- Chain Fall no. – 1
- Push Button Chord – 3.5m
- Lifting Speed Dual Speed -2.2 – 6.4
- Lifting Motor – 1.8Kw
- Traversing Motor – 0.4Kw
- Load Chain (dia x pitch) – 7.1 x 21
- Weight for additional 1 meter lift – 2.48kg
- Duty rating (%ED) – 40/20%ED (30min)
Warranty: 3 Years on Labor and Parts
