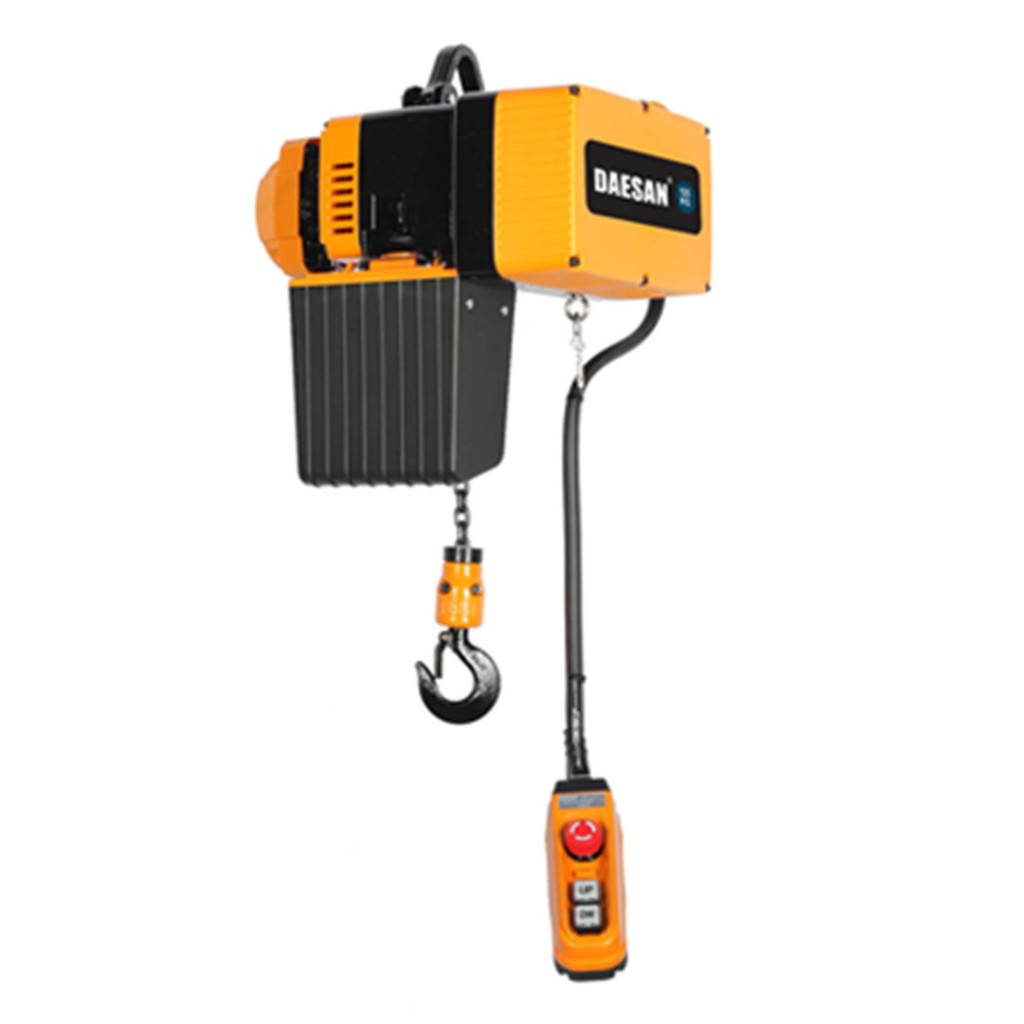

DAESAN Smart Hook Suspension Type

DL : Smart Hook Suspension

PRODUCT FEATURES

• Die casting and injection mold light and solid body
• TEFC enclosure with increased motor rating of 60% ED
• Strong and fast acting conical brake – easy maintenance
• Upper and Lower micro limit switches – Activate and stop the hoist motor preventing unnecessary clutch wear
• Friction clutch is an overload Protection – Device that prevents lifting when overloaded.
• Stepless Control by VFD – The speed of the load movement is proportional to the movement of the stepless control switch when it is pressed.
• Various mounting features for different applications
• Lightweight rail mount lug
• Top hook mount lug
• Trolley mount lug
• Hoist with smaller headroom in Korea]
• Power Supply Phase – 3
• Power Supply V – 220 / 380 / 449 (Customer’s Request)
• Chain Fall – 1  no.
• Standard Lift – 4m
• Push Button Cord Length – 3.5m
• Lifting Speed 50 Hz – 14.2 m/min
• Warranty: 3 Years on Labor and Parts

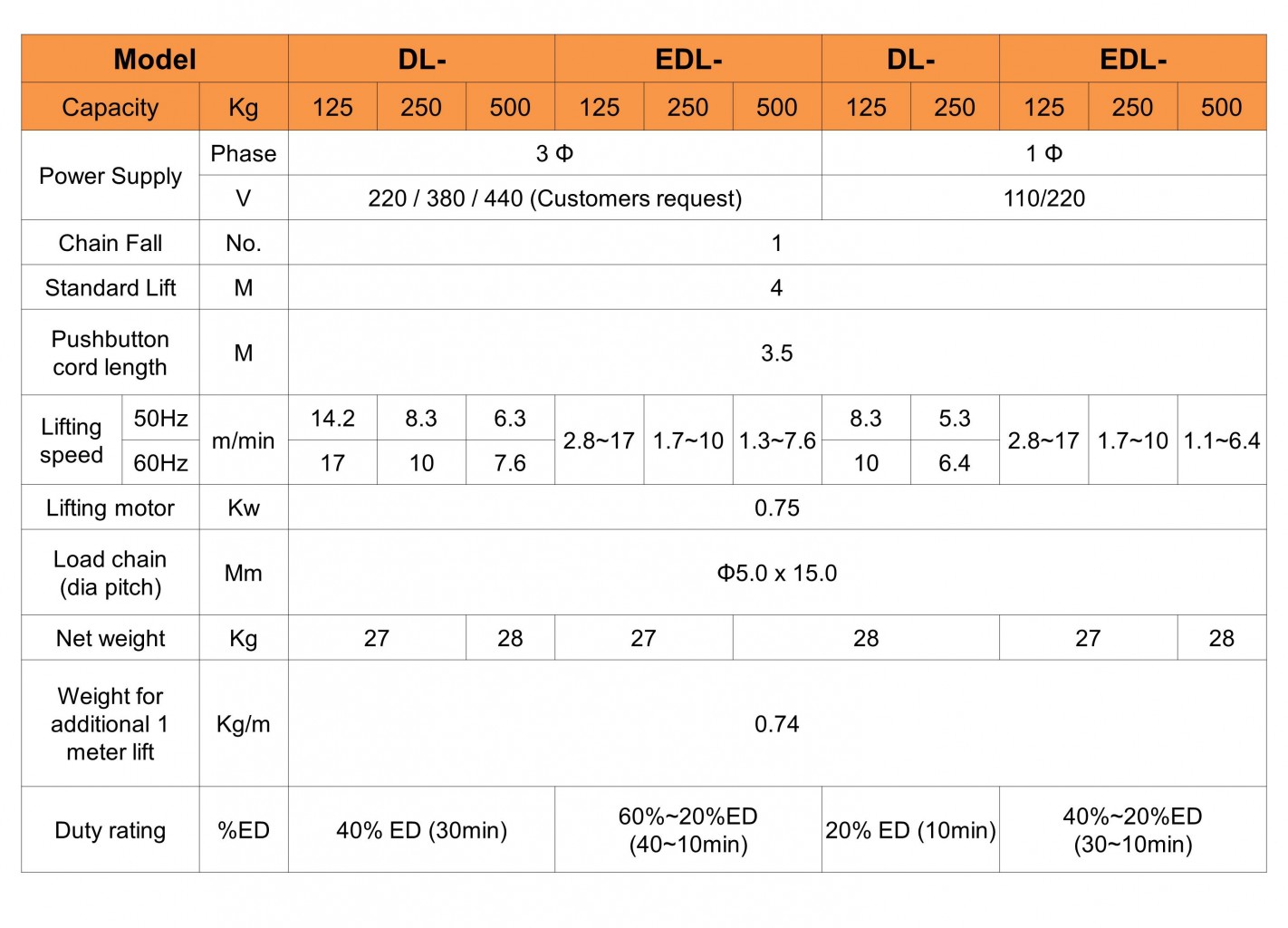

SPECIFICATIONS

*EDL type is VFD equipped stepless control hoist that hoist operation speed is controlled by the degree of push button press for smooth, quiet and precise operation.
