DAESAN CHAIN BLOCK DNS1 Series

,

DAESAN CHAIN BLOCK DNS1 Series

Categories: ,

PRODUCTS

  • 0.5t, 1t, 1.5t, 2t, 3t, 5t, 10t, 15t, 20t

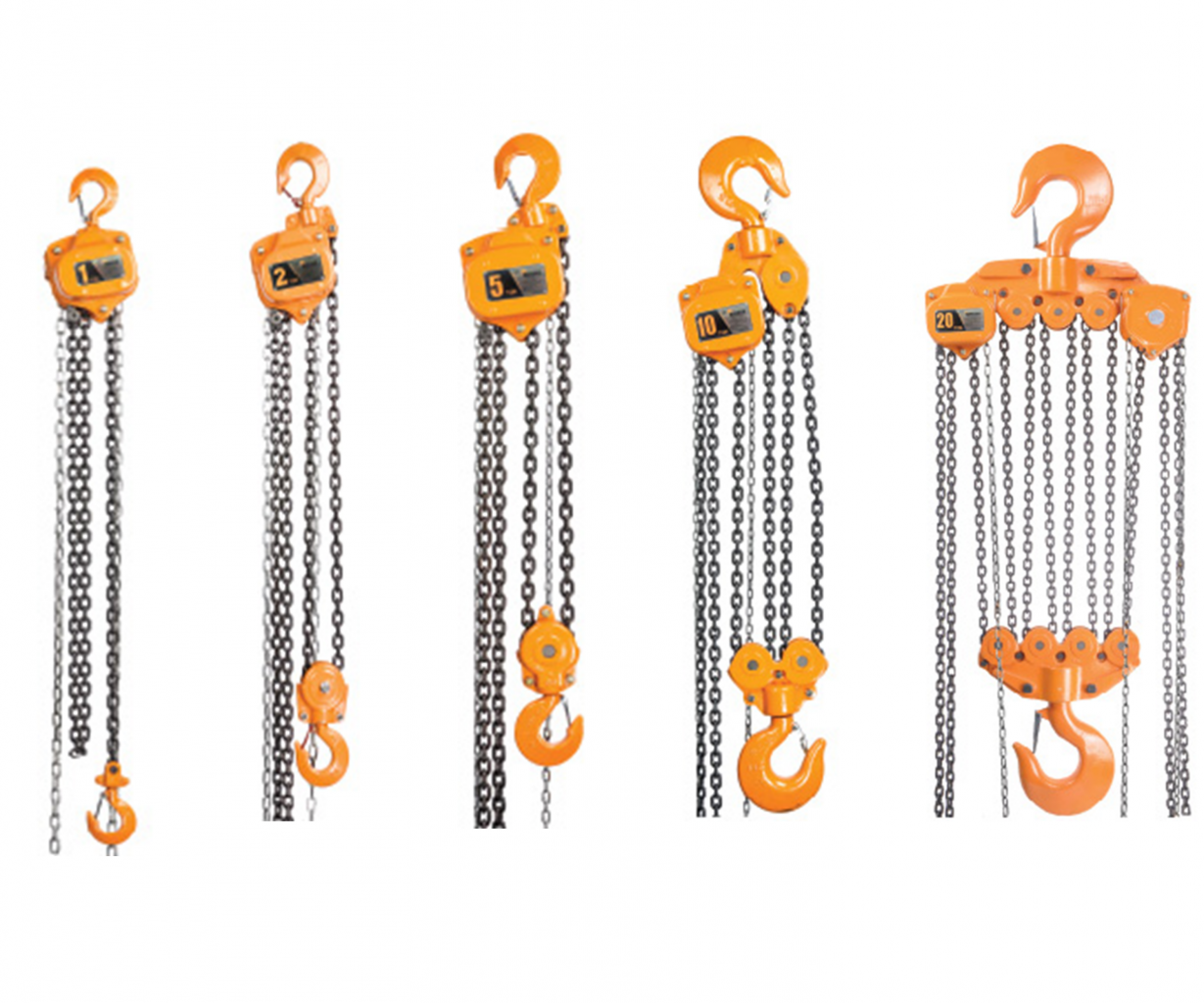

Chain Block

Daesan portable, light weight hand chain hoists are compact and provide a dependable working tool for industrial maintenance, construction sites, machine shops, and production situations where parts need to be positioned accurately but infrequently.

PRODUCT FEATURES

  • Cover: protective steel covers can easily be removed for inspection and maintenance. Wheel cover & Brake cover protect block from dust and rain
  • Mechanical Load Brake : Can hold a capacity load stationary at any position
  • Hook : All hooks are drop forged heat treated steel with spring type latches. Both hooks rotated 360? for easy rigging
  • Chain Guide : Allows smooth operation of load chain
  • Load sheaves : Deep cast pockets precisely fit the load chain. Load shafts are supported by pre lubricated bearings for smooth operation
  • Load Chain : Electric welded G80 alloy steel chain is heat treated for wear resistance and strength. Accurately and uniformly sized to seat properly in load sheaves

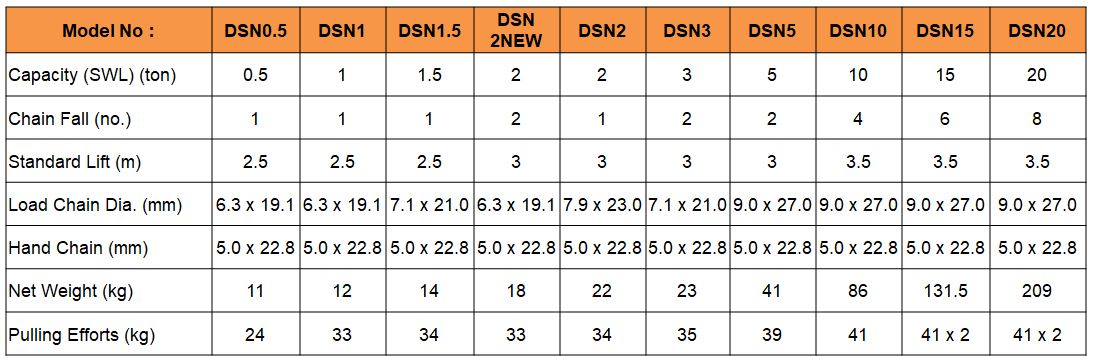

Specifications

  • Model – DSN1
  • Capacity – 1
  • Standard Lift – 2.5
  • Load Chain Dia – 6.3 X 19.1mm
  • Hand Chain – 5.0 x 22.8 mm
  • Net Weight – 12kg
  • Pulling Efforts – 33kg

Warranty: 3 Years on Labor and Parts
