DAESAN Friction Clutch Hook Suspension Hoist – DST

DST: Friction Clutch Hook Suspension Hoist

DAESAN single phase electric chain hoist compact designed equipped with a slip clutch to prevent it from encountering an overload condition. The upper limit switch prevents driving the bottom block into the bottom of the hoist protecting slip clutch from unnecessary wear. Which limits its ability to prevent an overload; it includes thermal motor protection that prevents motor damaging from excessive operation of the hoist. DST,DSTM type has made maintenance easier.

PRODUCTS

• 0.5t, 1t, 1.9t, 2t

PRODUCT FEATURES

• All standard units are CE Certified
• Super strength blackened load chain is standard Nickel plated load chain is optional upon request.
• Sealed body suitable for harsh indoor or outdoor environments with IP55 load.

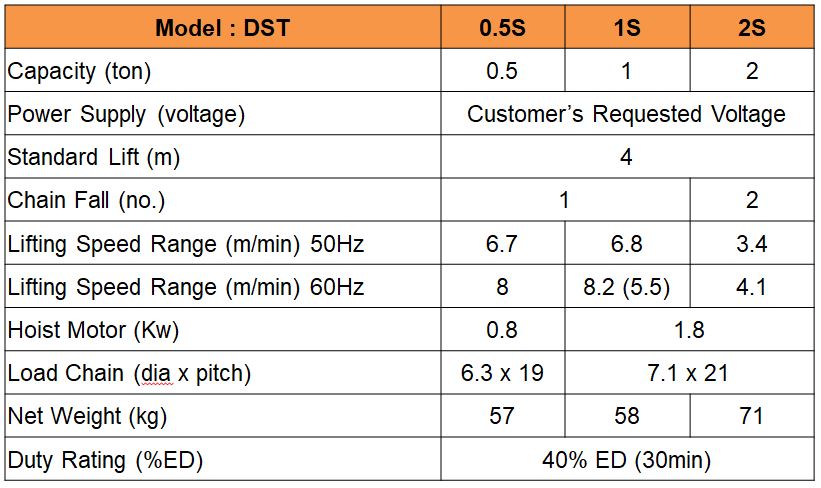

SPECIFICATIONS

• Model : DST
• Capacity : 1
• Power Supply : Customer Requested Voltage
• Standard  Lift : 4
• Chain Fall : 1
• Lifting Speed Range 50Hz : 6.8
• Lifting Speed Range 60Hz : 8.2
• Hoist Motor : 1.8
• Load Chain (dia x pitch) : 7.1 x 21
• Net Weight : 58
• Duty Rating – 40% ED (30 min)

Warranty: 3 Years on Labor and Parts
