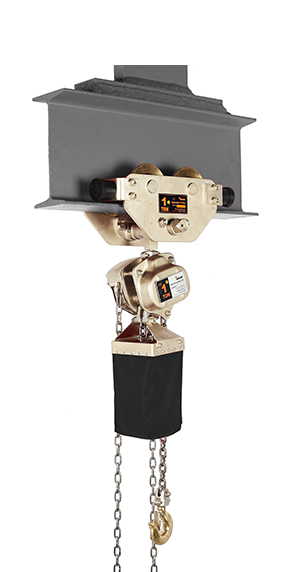

EX Chain Block EX DSN-Series

,

EX Chain Block EX DSN-Series

Categories: ,

PRODUCTS

  • 1t, 2t, 3t, 5t, 10t

PRODUCT FEATURES

  • Explosion Protection and Spark Resistance
  • Designed for explosive environments with spark- resistant, full bronze suspension and load hooks; stainless steel hand chain and electroless nickel plated load chai; and bronze wheels for trolley with safety drop stop and rubber bumper.
  • Corrosion Resistant
  • Enclosed robust electroless nickel plated housing protects internal components, even in the toughest conditions.
  • ATEX marking : EX II 2 GD C II T4 T + 135 degrees celsius
  • Suitable for gas and dust hazardous areas : zone 1 and 2 21 and 22
  • Stainless steel load chain (SUS316L)
  • Stainless Steel hand chain (SUS304)
  • Electroless nickel plated load chain
  • Bronze wheel

Options

  • Hoist body weather cover
  • Stainless steel frame canvas chain box
  • This option is available for all chain blocks and sparkle resistant chain hoists.
  • Chain box types: stainless frame canvas chain box and steel frame canvas chain box.

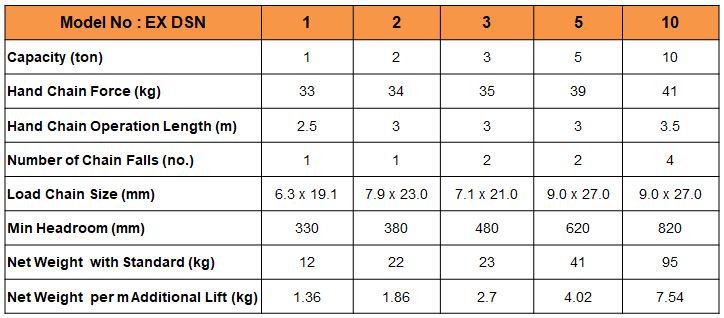

SPECIFICATIONS

  • Model – EX DSN
  • Capacity – 1
  • Hand Chain Force – 33kg
  • Hand Chain Operation Length – 2.5m
  • Number of Chain Falls – 1
  • Load Chain Dia – 6.3 X 19.1mm
  • Min Headroom – 330mm
  • Net Weight w Standard– 12kg
  • Net Weight per m Additional Life – 1.36kg

Warranty: 3 Years on Labor and Parts
