DAESAN Friction Clutch Hook Suspension Hoist – DSM Series

PRODUCTS

Available Capacity: 1t, 1.5t, 1.9t (Single), 2t(Single), 1.9t(Double), 2.5t, 3t(Single), 2.8t, 3t(Double), 5t, 7.5t, 10t, 15t, 20t
DSM: Dual Brake and Heavy Motorized Trolley

DAESAN three phase chain hoist are equipped with various safety functions with latest technology in the industry. All models include thermal motor protection with upper and lower limit switch overload limiter, dual electrical and mechanical load brake is simply the best heavy duty hoist in the market.

PRODUCT FEATURES

• All standard units are CE Certified
• Super strength blackened load chain is standards Nickel plated load chain is optional upon request.
• It is perfect type where frequent hoist operated is required.
• Sealed body suitable for harsh indoor or outdoor environment with IP55 rated.

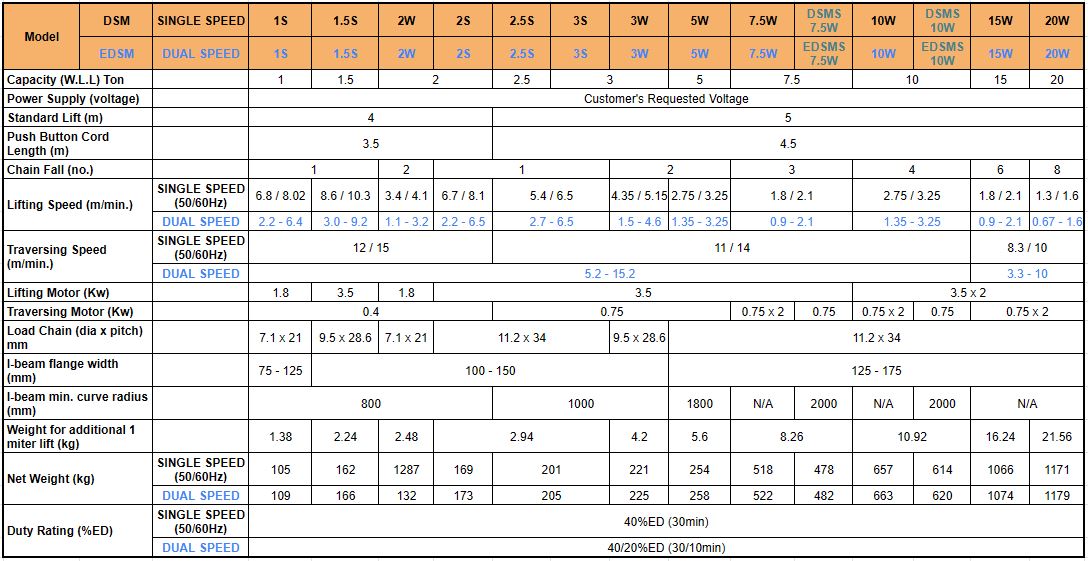

SPECIFICATIONS

Model : DSM-1S
Capacity : 1ton
Power Supply : Customer’s Requested Voltage
Standard  Lift : 4m
Chain Fall : 1
Lifting Speed Range 50Hz : 6.8 m/min
Lifting Speed Range 60Hz : 8.2 m/min
Hoist Motor : 1.8Kw
Load Chain (dia x pitch) : 7.1 x 21
Net Weight : 105kg

Warranty: 3 Years on Labor and Parts
