DAESAN Low Headroom Hoist DSTHM SERIES

,

DAESAN Low Headroom Hoist DSTHM SERIES

DSTHM: Low headroom type chain hoist (Slip clutch DST TYPE) DSHM: (DSA TYPE)

PRODUCTS

  • DSTHM – 1t, 2t (Double)
  • EDSTHM – 1t, 2t
  • DSHM – 1t, 1.9t (Double), 1.9t (Single), 2, 8t, 3t, 5t
  • EDSHM – 1t, 2t (Double), 2t(Single), 3t, 5t

PRODUCT FEATURES

  • DAESAN DSHM three phase electric chain hoists are equipped with various safety functions with latest technology in the industry. All Models include thermal motor protection with upper and lower limit switch, overload limiter, dual electrical and mechanical load brake is simply the best heavy duty hoist in the market.

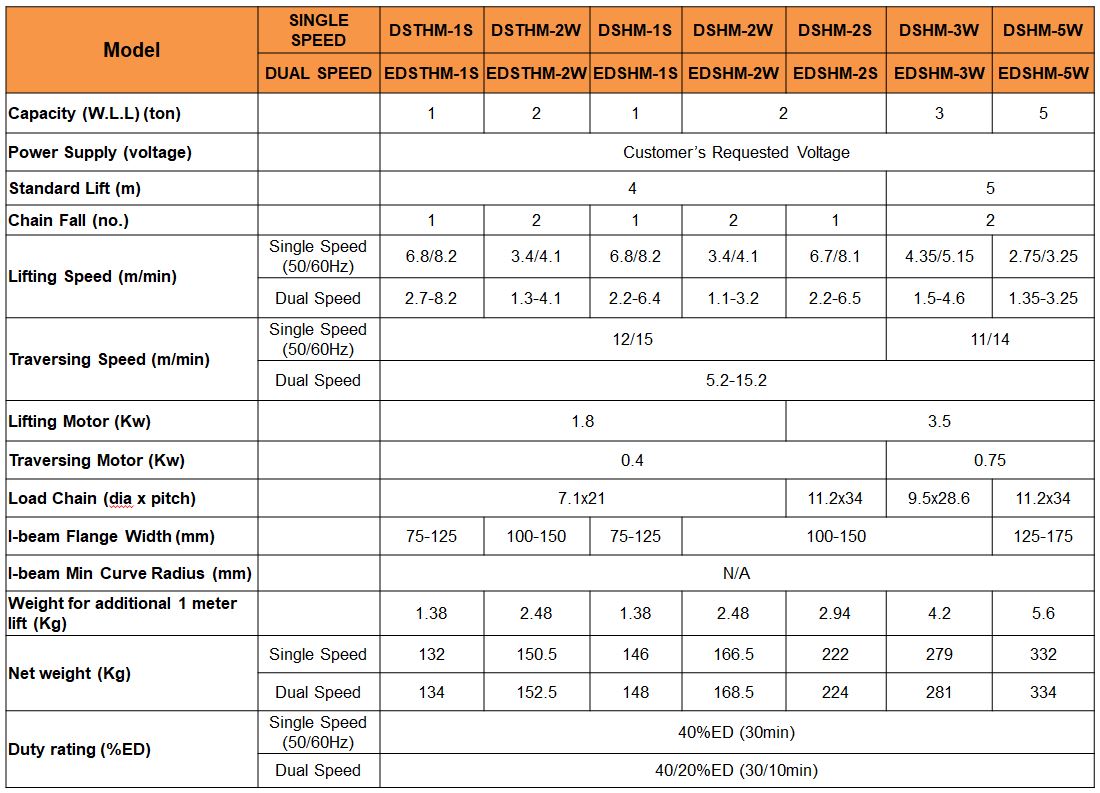

Specifications

  • Model – DSTHM-1S
  • Capacity – 1 ton
  • Power Supply –  Customer’s Requested Voltage
  • Standard Lift – 4m
  • Chain Fall no. – 1
  • Lifting Speed 50/60Hz – 6.8 / 8.2
  • Traversing Speed 50/60Hz – 12/15
  • Lifting Motor – 1.8Kw
  • Traversing Motor – 0.4Kw
  • Load Chain (dia x pitch) – 7.1 x 21
  • I-beam Flange Width – 75-125
  • I-beam Min Curve Radius – n/a
  • Weight for additional 1 meter lift – 1.38
  • Net weight – 132kg
  • Duty rating (%ED) – 40%ED (30min)

Warranty: 3 Years on Labor and Parts
