PRODUCTS

• Available Capacity : 0.5t, 1t, 2t
• DSS: Friction Clutch Hook Suspension Hoist (1Ph)

DAESAN single phase electric chain hoist compact design equipped with a slip clutch to prevent it from encountering an overload condition. The upper limit switch prevent driving the bottom block into the bottom of the hoist protecting the slip clutch from unnecessary wear, which limits its ability to prevent an overload it include thermal motor protection that prevent motor damaging from excessive operation of the hoist. DSS, DSSM type has mad maintenance easier.

PRODUCT FEATURES

• All standard units are CE Certified
• Super strength blackened load chain is standards Nickel plated load chain is optional upon request.
• Sealed body suitable for harsh indoor or outdoor environment with IP55 rated.

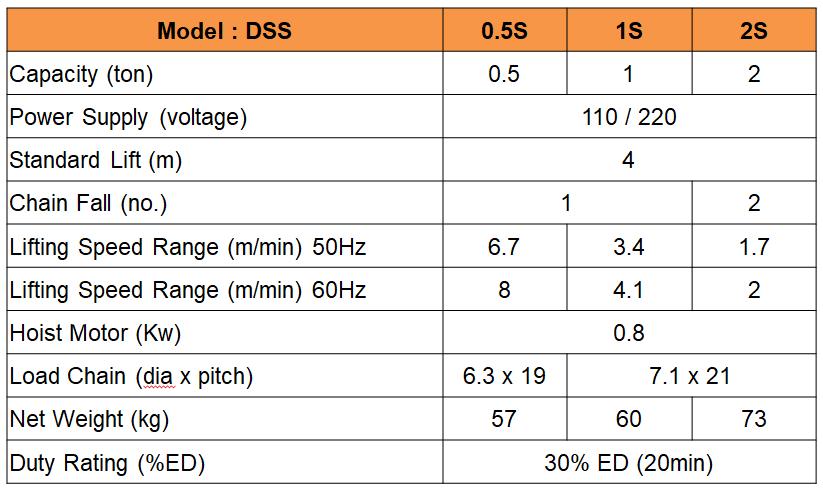

SPECIFICATIONS

• Model : DSS-1S
• Capacity : 1ton
• Power Supply : 110/ 220V
• Standard  Lift : 4m
• Chain Fall : 1
• Lifting Speed Range 50Hz : 3.4 m/min
• Lifting Speed Range 60Hz : 4.1 m/min
• Hoist Motor : 0.8Kw
• Load Chain (dia x pitch) : 7.1 x 21
• Net Weight : 60kg

Warranty: 3 Years on Labor and Parts
