DAESAN Dual Break and Heavy Duty Hook Suspension Type – DSA SERIES

,

DAESAN Dual Break and Heavy Duty Hook Suspension Type – DSA SERIES

DAESAN Dual Break and Heavy Duty Hook Suspension Type – DSA Series

DAESAN three phase chain hoists are equipped with various safety functions with the latest technology in the industry. All models include thermal motor protection with upper and lower limit switch overload limiter, dual electrical and mechanical load brake is simply the best heavy duty hoist in the market.

PRODUCTS

  • 1t, 1.5t, 1.9t (Single ), 2t (Single), 1,9t (Double), 2t(Double), 2.5t, 3t (Single), 2.8t, 3t (Double), 5t, 7.5t, 10t, 15t, 20t

PRODUCT FEATURES

  • All standard units are CE Certified
  • Super strength blackened load chain is standard Nickel plated load chain is optional upon request
  • It is the perfect type where frequent hoist operation is required.
  • Sealed body suitable for harsh indoor or outdoor environments with IP55 load.

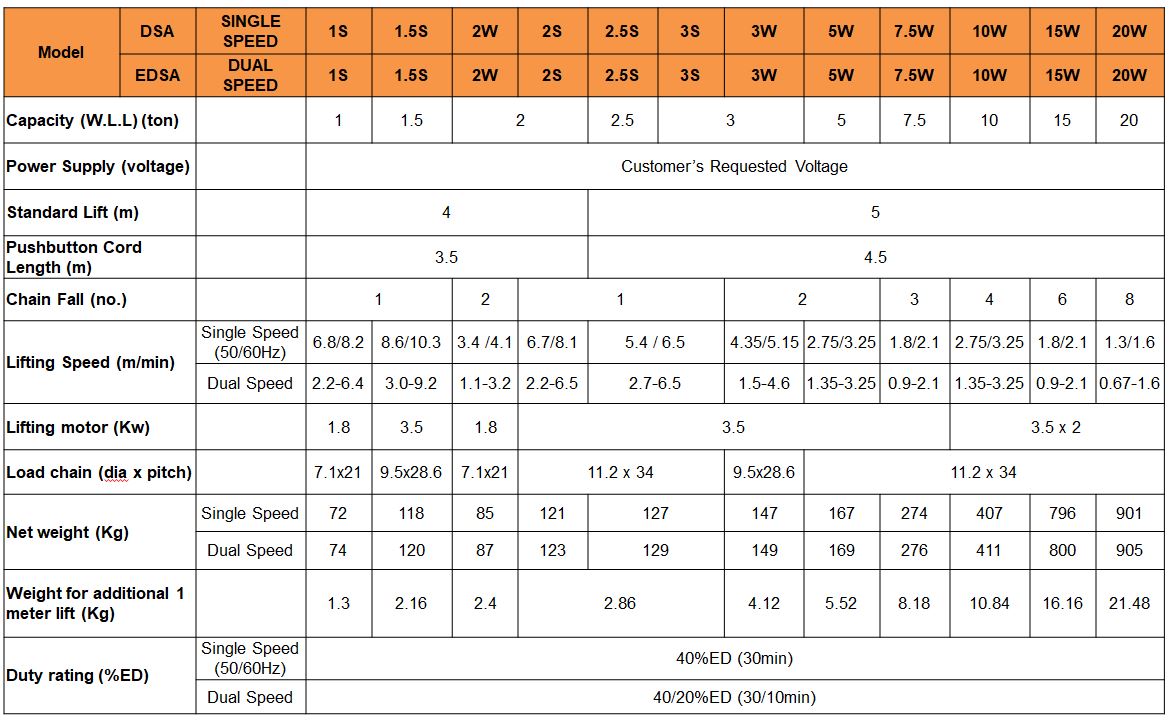

SPECIFICATIONS

  • Model : DSA
  • Capacity : 1
  • Power Supply : Customer’s Requested Voltage
  • Standard  Lift : 4
  • Push Button Cord Length – 3.5m
  • Chain Fall : 1
  • Lifting Speed (Single)  50/60 Hz –  6.8/8.2 m/min
  • Lifting Motor – 1.8 kw
  • Load Chain (dia x pitch) : 7.1 x 21
  • Net Weight : 72kg
  • Weight for additional 1 meter lift – 1.3 kg
  • Duty Rating (Single) – 40% ED (30 min)

Warranty: 3 Years on Labor and Parts
