FEATURES

• Water-cooled
• Multi-laser function (welding, rusting, cutting)

SPECIFICATIONS

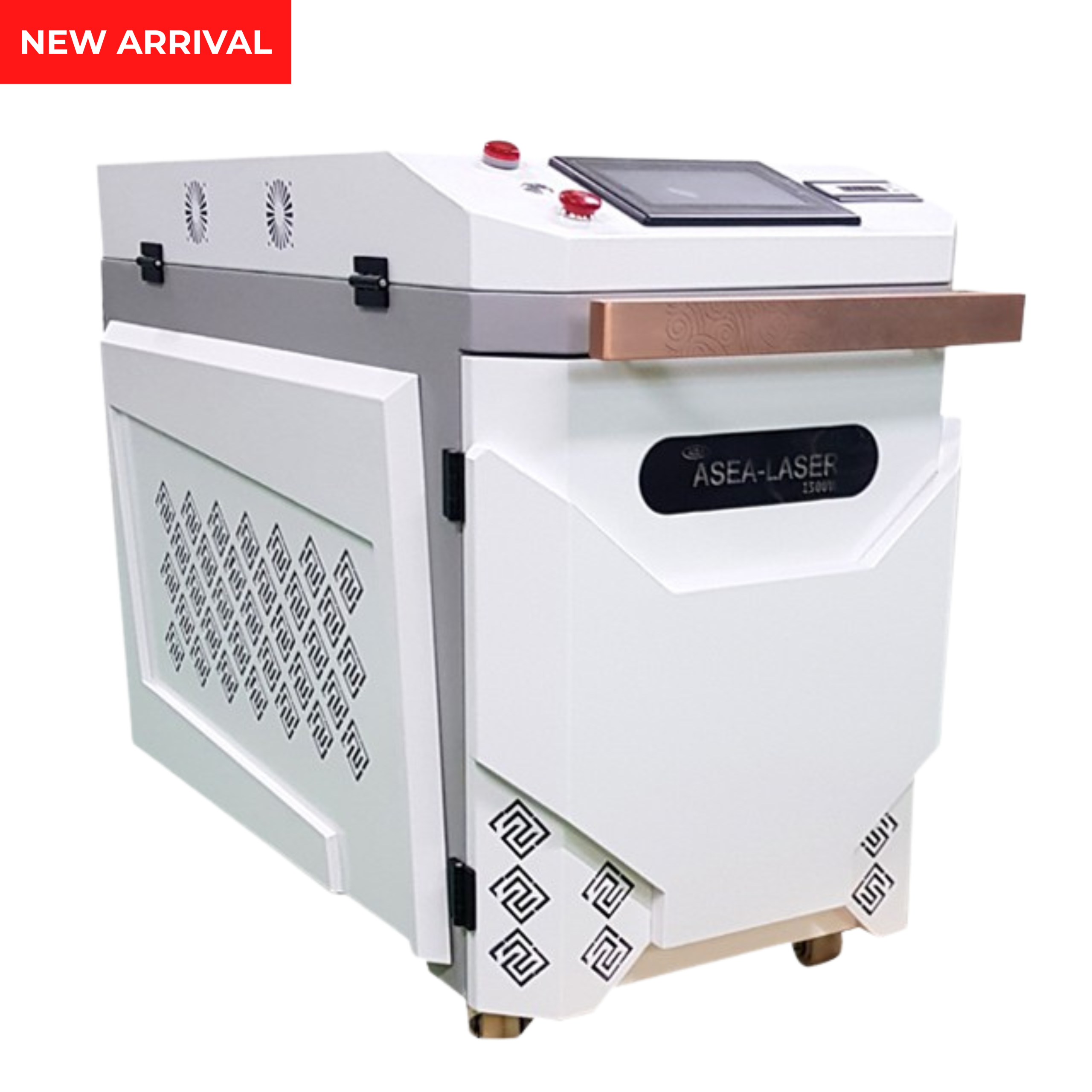

• Model : ASEA-1500WF
• Rated Power : 1500W
• Working Type : Continuous use
• Polarization Direction : Vibration motor left and right
• Output Adjustment Range : 10∼100
• Center Wavelength : 1080±3nm
• Output Instability : <3%
• Light Output : >0.5mW
• Output Interface : QBH
• Laser Beam Thickness : 20um
• Laser Beam Length : Standard batch 10m / Customizable 15m
• Operating Voltage : 220v ±10%, 60Hz
• Maximum Power Consumption : 6000W
• Control Method : Use of liquid crystal (Display / upper device)
• Dimension (WxLxH) : 630 x 230 x 585mm
• Weight : 48kg
• Operating Temperature : 5-40°C
• Humidity : <70%
• Storage Temperature : -10-60°C
• Air Pressure : Less than 0.7MPa
• Inclusions : Wire feeder and Complete accessories
