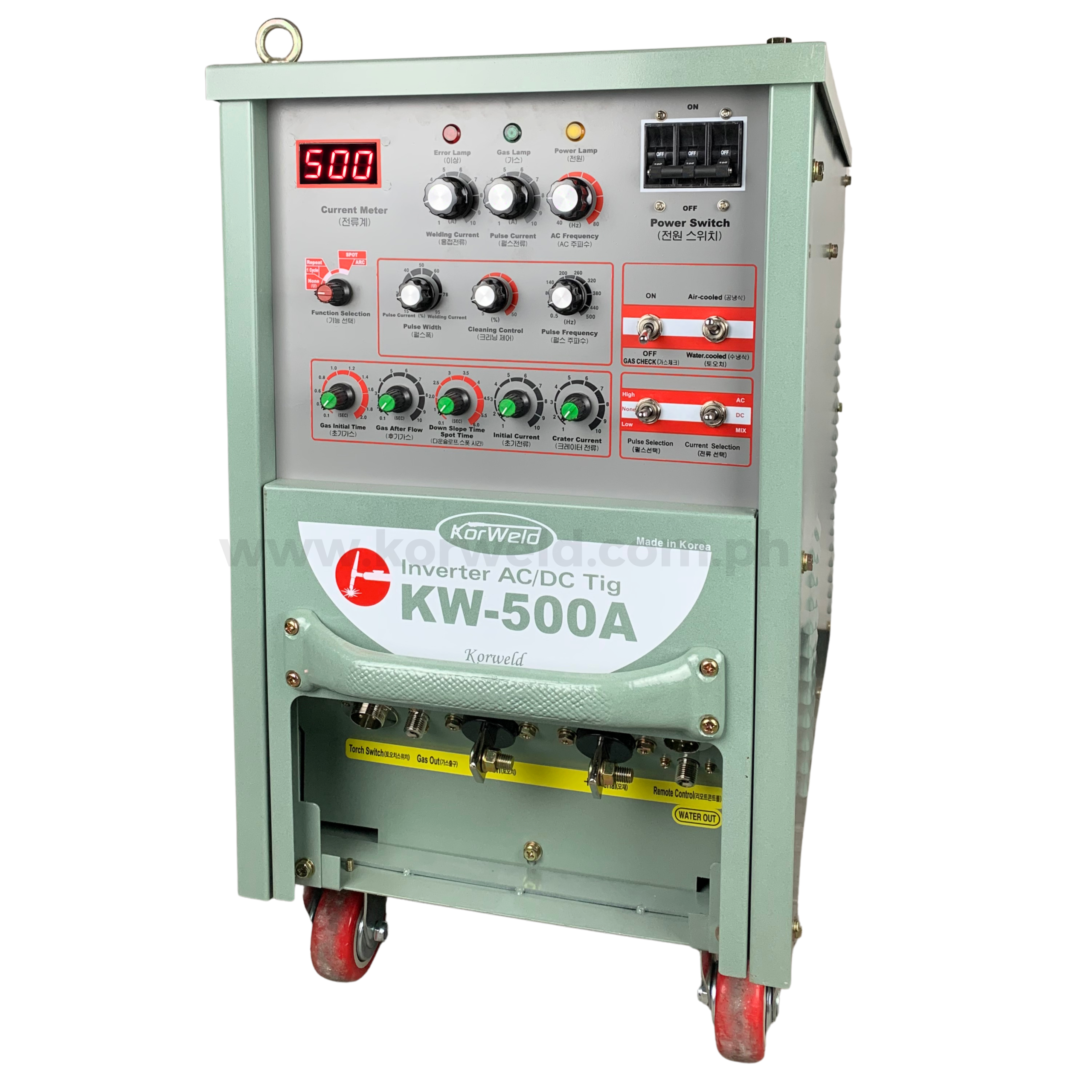

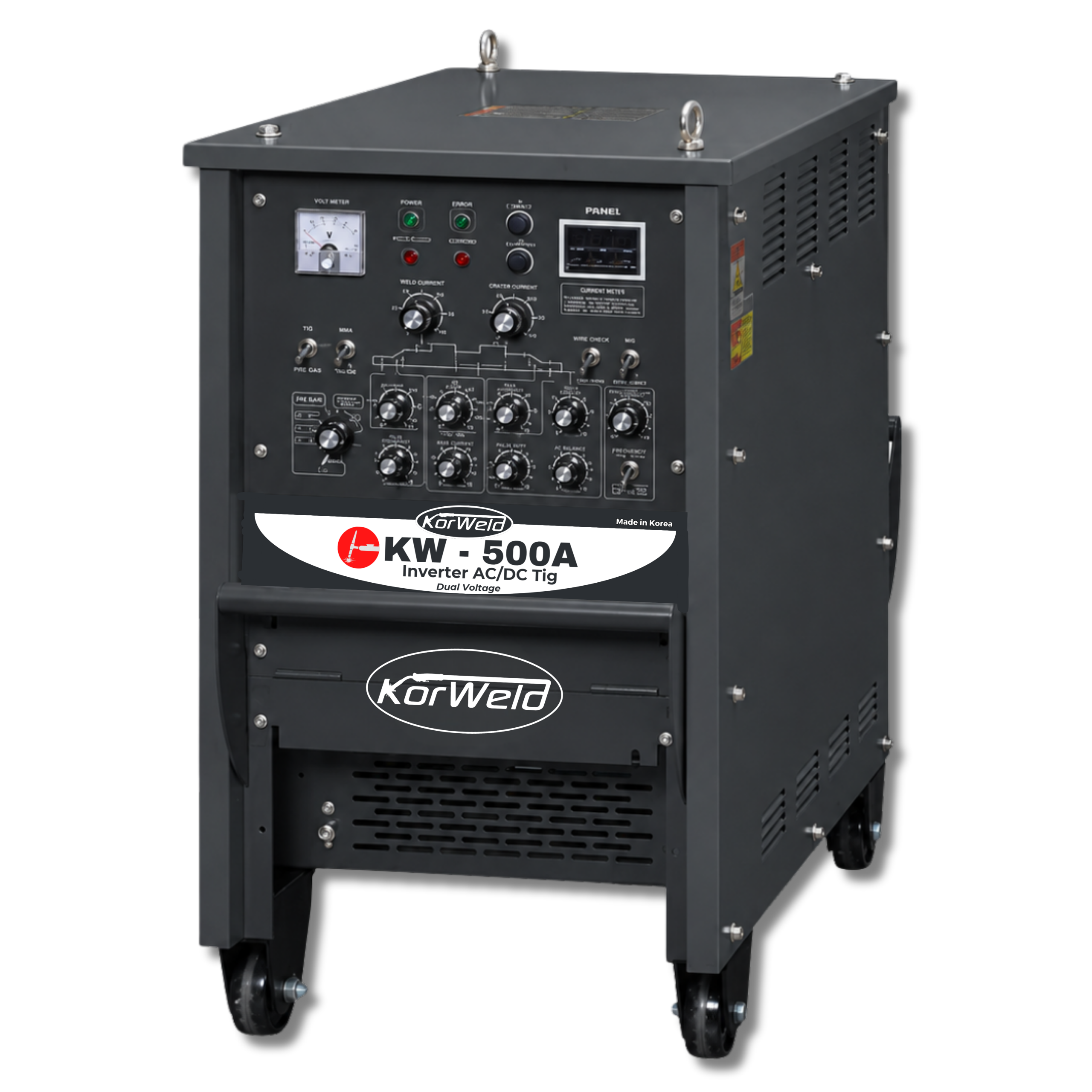

KORWELD AC/DC TIG 500A Inverter Type Welding Machine
TIG/GMAW/FCAW Welding Machine, Welding Machines
KORWELD AC/DC TIG 500A Inverter Type Welding Machine
ADVANTAGES OF KORWELD TIG Inverter Type Welder
- Good for High Quality TIG Welding
- Digital Control : 5 to 350/500A
- All TIG Functions available and adjustable (Current, Crater, Pulse, Up-down Slope, TIG & ARC)
- Very light and compact size
- Built in safety device / Temperature sensor
- Designed for tropical weather
WELDING MODE
- Spot Welding
- DC TIG Welding
- AC TIG Welding
- Mixed AC/DC TIG Welding
- Low Pulsed TIG Welding
- High Pulsed TIG Welding
- DC ARC/STICK Welding
SPECIFICATIONS
- Input Voltage : 220V, 440V / 1&3 Phase
- Rated Frequency : 50-60 Hz
- Rated Input (TIG/ARC) : 17.7kVa / 19.3kVa
- Rated Output (TIG/ARC) : 10-500A / 10-400A
- No Load Voltage : 68V
- Rated Load Voltage : 26V
- Duty Cycle : 90%
- Up-Down Slope Time : 0.1-5 sec (with Crater Function)
- Low Pulse : 0.5-15 Hz
- High Pulse : 15-500 Hz
- Gas Flow Time Pre : 0.1 – 5 sec
- Gas Flow Time After : 0.1-10 sec
- Pulse Width Control : 15-85%
- Weight : 77kg
- Dimension : L 73cm x W 39cm x H 69cm
- Standard Accessories : Air Cooled TIG Torch Set, Ground Clamp Assembly, Gas Hose and Regulator
Warranty: 1 Year on Labor and Parts
