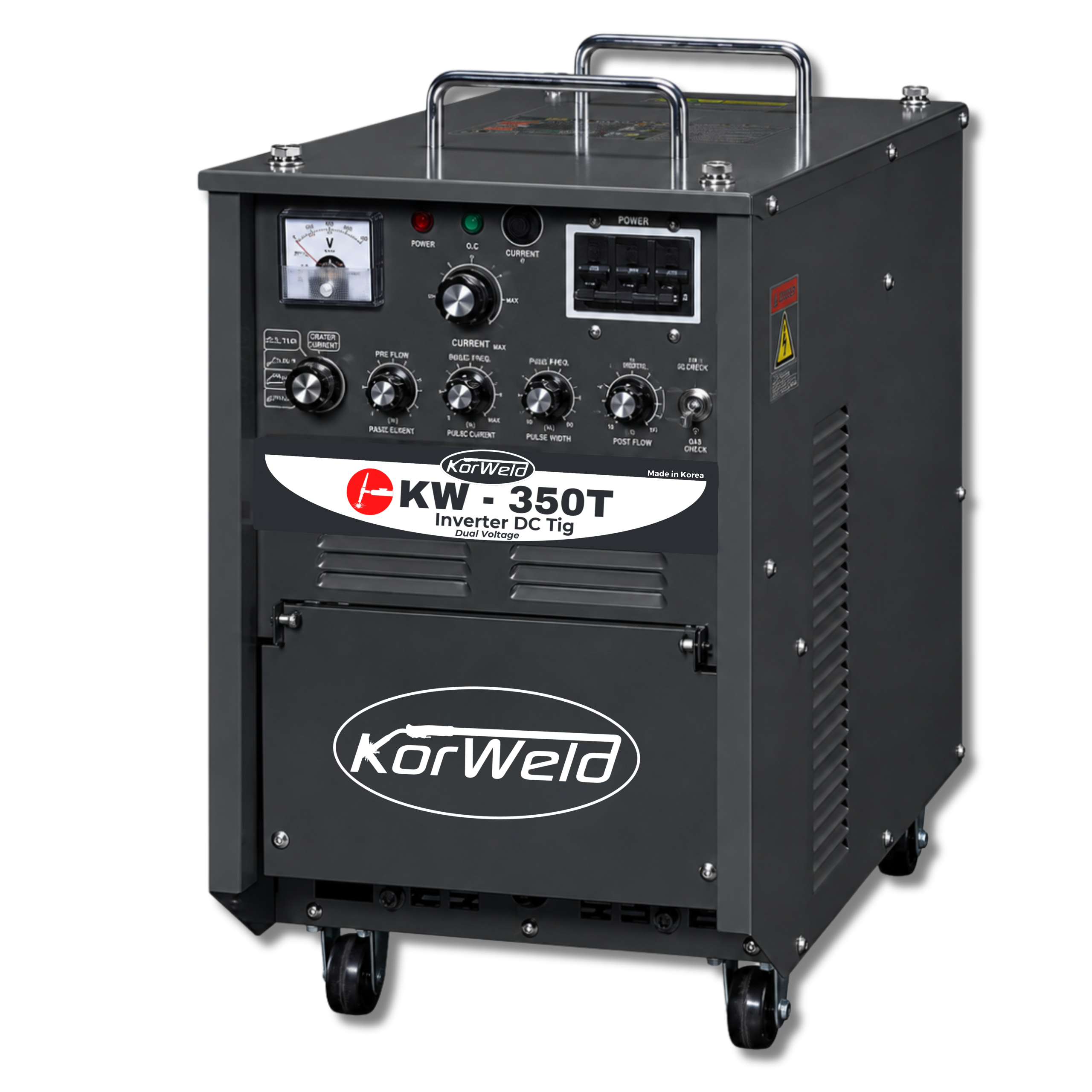

KORWELD DC TIG 350A Inverter Type Welding Machine

,

KORWELD DC TIG 350A Inverter Type Welding Machine

ADVANTAGES OF KORWELD TIG Inverter Type Welder

  • Good for High Quality TIG Welding
  • Digital Control : 5 to 350/500A
  • All TIG Functions available and adjustable (Current, Crater, Pulse, Up-down Slope, TIG & ARC)
  • Very light and compact size
  • Built in safety device / Temperature sensor
  • Designed for tropical weather

SPECIFICATIONS

  • Input Voltage : 220V / 1&3 Phase
  • Rated Frequency : 50-60 Hz
  • Working Voltage : 22 – 24V
  • Rated Input (3 Phase) : 6 kVa (10kVa)
  • Current Range : 5 – 350A
  • Pre Gas delay time : 0.3 sec
  • Up Slope : 0.1 – 10 sec
  • Down Slope : 0.1 – 10 sec
  • Usable Electrode Sizes : 1.6mm – 4.0mm
  • Weight : 25kg*
  • Dimension : L 46cm x W 28cm x H 36cm
  • Standard Accessories: Air Cooled TIG Torch Set, Ground Clamp Assembly, Gas Hose and Regulator

Warranty: 1 Year on Labor and Parts
